C30M

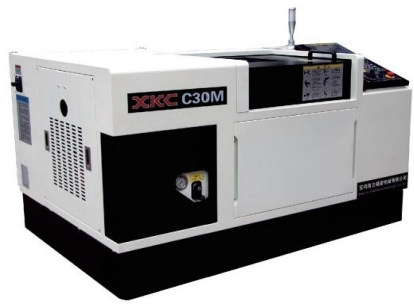

HIGH PRECISION CNC LATHE
★C30M high-precision CNC lathe isa lathe product with advanced domestic level，high configuration, high precision, and high speed. The spindle bearing adopts NSK high speed, lowheating main shaft special bearings, assembled in a dust-free and constant temperature working chamber, with a runout of lessthan 0.001 and a maximum rotational speed of up to 8000r/min.

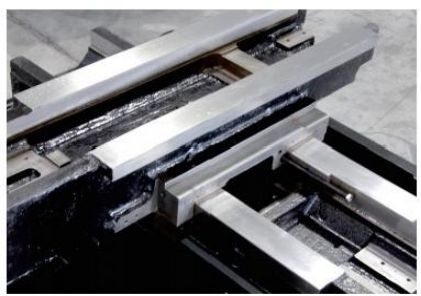

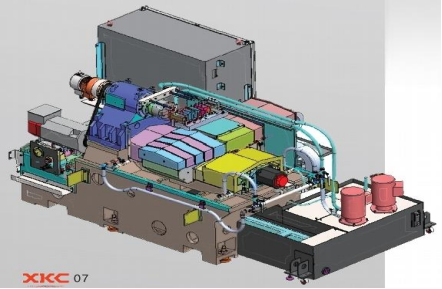

★The X and Z feed axis guide rails are all rectangular guides that have been quenched, precision ground, and manuallyscraped and ground for assembly. They have high load-bearing capacity and good seismic resistance. They are equipped with a grating ruler and a fully closed loop structure design. The positioningaccuracy is less than 0.003 and therepeatability is less than 0.001.
★Adopting Xili's classic combtypetool restand dovetail quick change tool holder, the structure is simple, economical, practical, and efficient.
★The machine tool reserves a truss robot interface, and the truss connection is reliableand fast, which can meet the efficient automated processing needs of small and medium-sized parts.
項目ITEM | C30M | |
加工能力 Capacity | 最大回轉直徑Max swing diameter | Φ320mm |
最大棒料直徑spindle through bar diameter | Φ30mm | |
最大加工直徑Max. turning diameter | 中φ150mm | |
最大加工長度Max. turning length | 200mm | |
主軸 Spindle | 主軸轉速范圍Spindle speed | 30-8000 r/min |
工件夾持形式Clamp type | 中空卡盤5寸Hollow chuck | |
主軸端部規格Spindle nose | A2-4 | |
快進速度 Fast forward speed | X軸快移速度 X-axis rapid traverse | 15m/min |
Z軸快移速度 Z-axis rapid traverse | 15m/min | |
行程 Travel | X軸移動量X-axis travel | 250mm |
Z軸移動量Z-axis travel | 220mm | |
刀具配置 hguration | 刀具形式Tool form | comb type tool rest |
刀具規格Tool size(Turning/and boring) | 16×16/φ25mm | |
電機 motor | 主軸電機Spindle motor | 3.7/5.5kW |
進給電機Feed motor X/Z | 0.75/2.2kW | |
其它 Others | 冷卻馬達Cooling motor | 0.55kW |
總電氣容量Required electric power | 15 kVA | |
主軸中心高度Spindle center height | 950mm | |
機床尺寸(長×寬×高)Floor Space | 2315*1500*1200mm | |
機床重量Mass of machine | 約2200KG About 2200KG | |
